Single Phase Pole Mounted Overhead Distribution Transformer

Name: Single Phase Pole Mounted Overhead Distribution Transformer
Brand: EUE Power
Price: 1 USD

Quality Single Phase Pole Mounted Overhead Distribution Transformer for sale

Hinh Voltage(V) : 34500/19920/13800/7957 13200/7620 12470/7200 or other

Dimension (mm)D : 890

Dimension (mm)H : 1335

Place of Origin : China

On-Ioad Loss(W) : 1410

Weight(kg) : 680

Payment Terms : L/C,T/T,DDP,DDU

Packaging Details : Different packaging methods are adopted according to different modes of transportation

Dimension (mm)W : 795

Brand Name : EUE Power

Price : Negotiable

Power (kVA) : 120-240 240-480 347-600

No-Ioad Loss(W) : 350

Power(kVA) : 167

Contact Now

Single Phase Overhead Distribution Transformer

High-performance power distribution solution engineered for reliability and compliance with international standards.

Key Advantages

Global Compliance: Fully compliant with IEEE, IEC, and various national standards.
Premium Construction: Crafted with high-grade copper windings and quality insulating oil.
Durable Design: Corrosion-resistant electrostatic powder painting with a recessed bottom design.
Safety First: PCB-free insulation oil with integrated automatic pressure relief valve.

Overview

Single-Phase Pole-Mounted Transformer is crafted with premium-grade copper windings and high-quality insulating oil. These units can be customized to meet the specific requirements of power utilities in most countries. EUE Power prioritizes customer satisfaction.

Product Structure

Cylindrical sealed structure: Each unit of the transformer is equipped with ANSI-compliant grounding devices, lifting hooks, and support lugs. It includes one or two high-voltage bushings on the cover, low-voltage bushings on the tank wall, as well as eyebolts and connection terminals. Please note that the tap-changer must be adjusted according to the instructions only after the power is turned off.

Performance Advantages

Compliant with IEEE C57, ANSI C57, IEC60076, and various national standards.
Core and Windings: CRGO (Cold Rolled Grain Oriented Silicon Steel) or amorphous metal core; copper or aluminum windings.
Automatic pressure relief valve.
PCB-free insulation oil.
Anti-corrosion electrostatic powder coating.
Recessed base design.
50/60Hz frequency support.
Weatherproof bushing mounting (HV/LV).

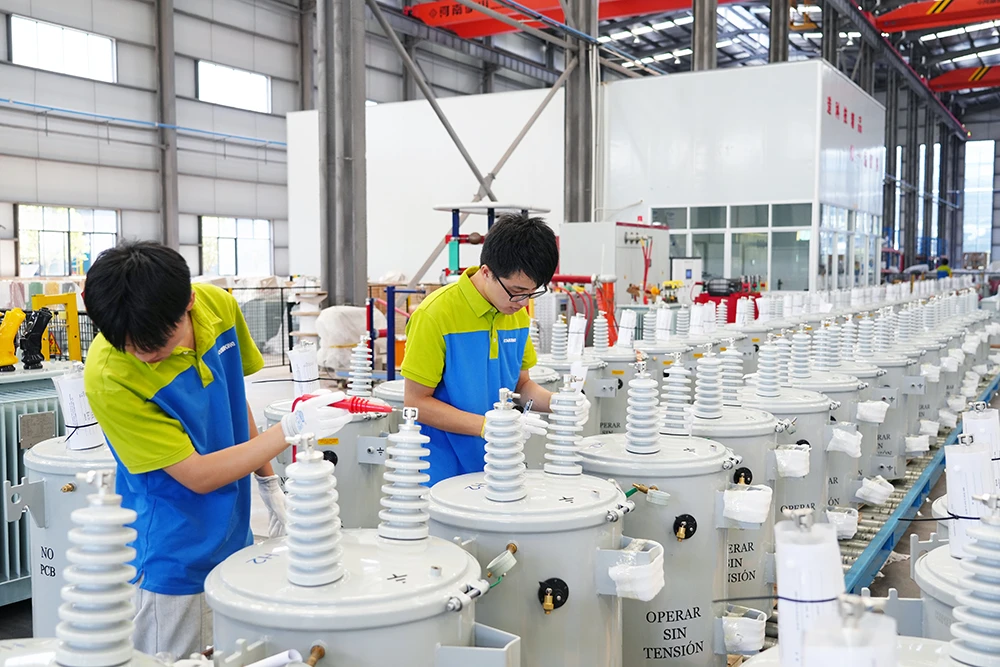

Product Photos

Single Phase Pole Mounted Overhead Distribution Transformer

Technical Parameters

Power(kVA)	Hinh Voltage(V)	Power (kVA)	Loss(W)		Dimension (mm)			Weight(kg)
Power(kVA)	Hinh Voltage(V)	Power (kVA)	No-Ioad Loss	On-Ioad Loss	W	D	H	Weight(kg)
5	34500/19920/13800/7957 13200/7620 12470/7200 or other	120-240 240-480 347-600	19	75	465	485	855	92
10			36	120	500	525	885	150
15			50	195	520	565	905	210
25			80	290	560	590	935	258
37.5			105	360	610	625	935	340
50			135	500	635	675	1035	395
75			190	650	745	840	1035	480
100			210	850	770	965	1135	530
167			350	1410	795	890	1335	680

Operation Conditions

Installation: Suitable for both indoor and outdoor use.
Altitude: ≤ 2000m above sea level.
Ambient Temperature: Maximum 40℃; Minimum -25℃.
Relative Humidity: Monthly average 95%; Daily average 90%.
Environment: Free from corrosive or flammable gases and vapors.
Vibration: Free from frequent violent vibrations.

Why Choose EUE Power Distribution Transformers?

Engineered for safety and sustainability, our transformers feature flame-retardant, low-noise designs that fully comply with UL and IEEE standards. They are ideal for critical environments such as hospitals, data centers, and urban infrastructure. As an experienced Chinese manufacturer of 10kV, 20kV, and 35kV transformers, we guarantee rigorous quality control, fast lead times, and tailored configurations. Secure your eco-conscious power solution today!
